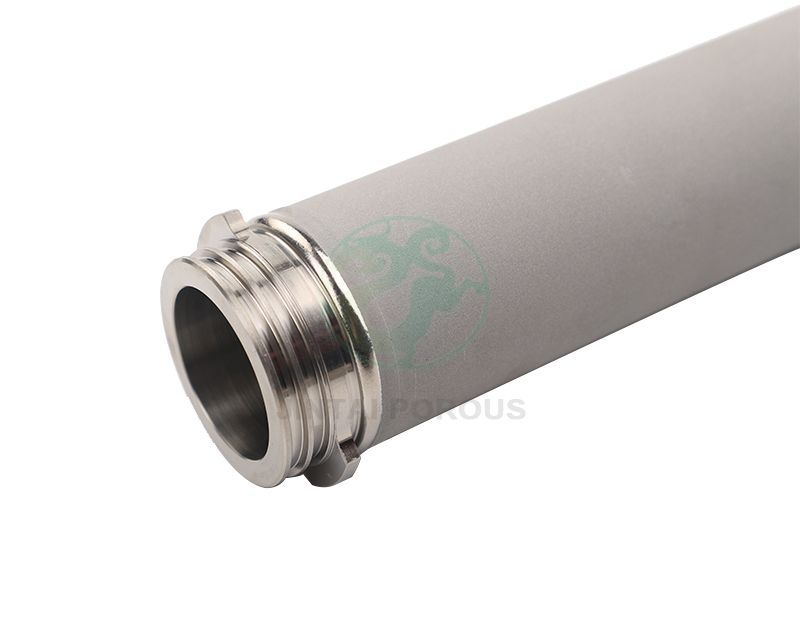

Sintered Porous Metal Double-Layer Filter

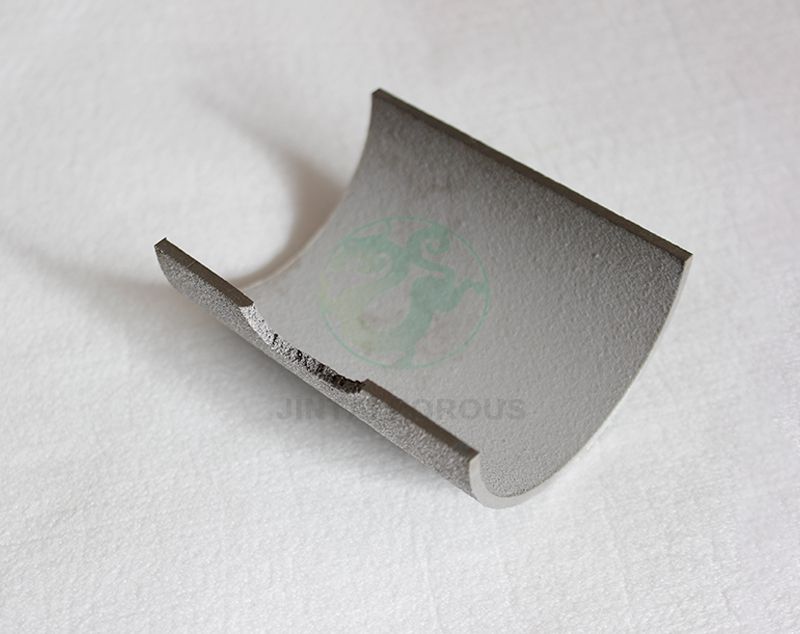

The double-layer filter element is the patent product of Jintai Company. By controlling different raw materials and adopting a one-time molding process, the gradient distribution of the pore size can be achieved. The double-layer structure plays a role of support and filtration at the same time, and the gradient-distributed pore structure can achieve a good separation effect with lower energy consumption. Compared with the rolled filter element, the double-layer filter element has a more complete structure, does not require welding, and is more corrosion resistant. It is the first choice to replace the rolled filter element and is also a new solution in the field of cross-flow filtration.

Features

Interchanged internal and external precision

Better permeability

Higher economy

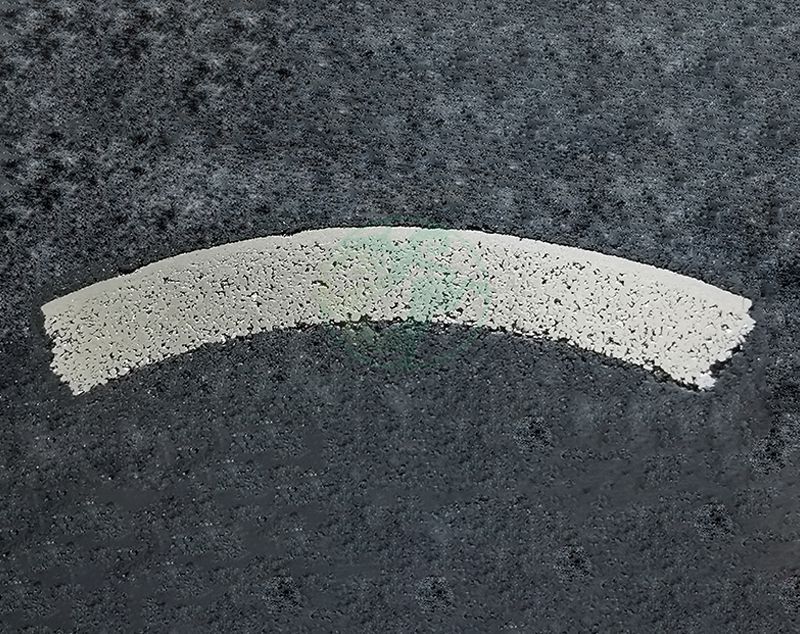

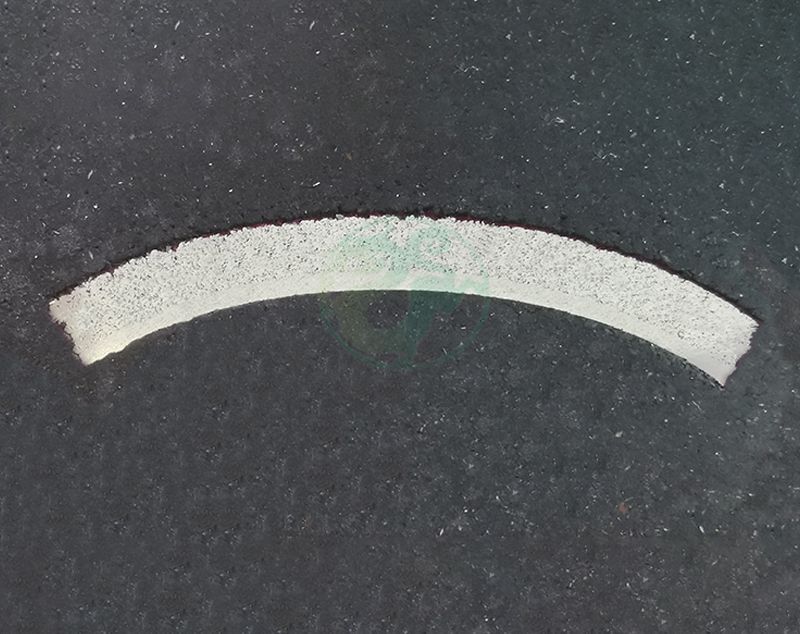

Pore size gradient distribution

Specifications
Material selectionStainless steel: 316L
Other materials required by the customer
Filtration Grade0.5um 1um 3um 5um 10um
Other grade required by the customer
Data & SpecificationsLength: The longest seamless tube is 1000mm
Diameter: 40-75mm
Other specifications and sizes required by customers
ConnectionThread, flange, flat pressing, quick connection, etc.
Other ways required by customers


Typical Application

Polymer melt filtration

Cleaning and filtering of chemical raw materials and intermediates

High temperature flue gas filtration

Security filtration in the water treatment system

Filtration and recovery of catalysts in chemical, pharmaceutical and other fields
