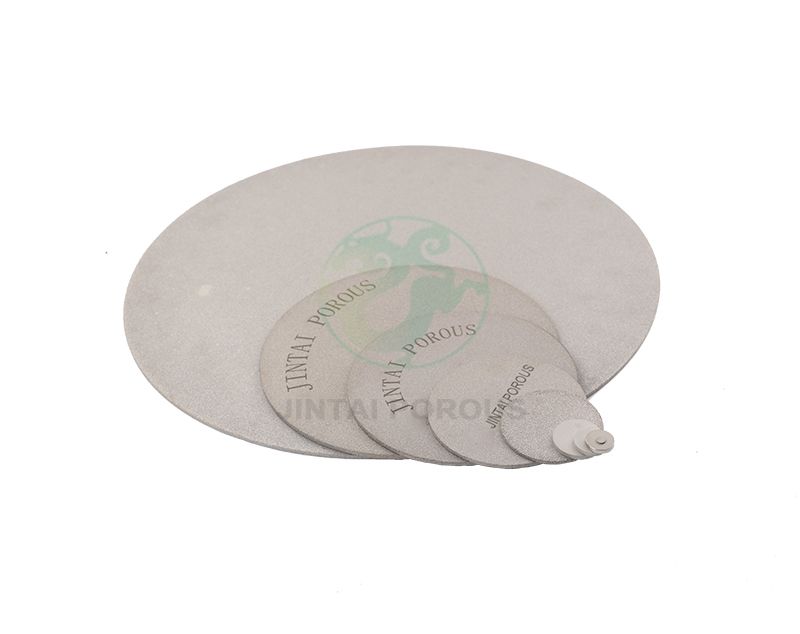

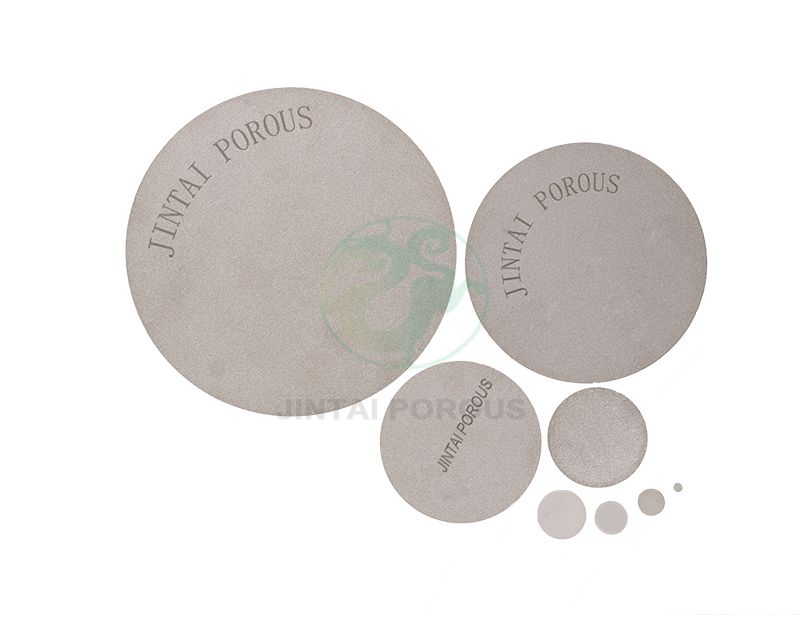

Sintered Porous Metal Stainless Steel Discs

The porous metal discs of JINTAI can be customized in various specifications according to customer requirements, and the parameters such as diameter, thickness, material and grade can be changed to meet customer process requirements. In addition, the discs can be encapsulated in various metal or non-metal parts for use.Sintered Filter Disc is a high-performance filtration device crafted through a special sintering process. It stands out as a top-tier Metal Filter Disc for its robustness and efficiency. It combines metal or non-metal powders under heat and pressure to form a solid, yet porous disc.Its uniform pore structure offers excellent permeability, precision filtration, and mechanical strength. It is ideal for separating, purifying, and sieving various mediums in numerous industries. It boasts a long service life and can endure extreme temperatures and corrosive environments, ensuring consistent and reliable performance.

What is Sintered Metal Filter Disc?

Features

High rigidity and stability for long service life.

Excellent resistance to corrosion, acids, alkalis and abrasion.

High heat resistance, can be used in the temperature range of -200°C to 600°C

Multiple filtration grades available with high filtration accuracy for different applications.

Good dirt holding capacity.

Easy to clean and reusable, thus reducing downtime.

Sintered metal filter discs can be formed into round, square, rectangular, oval, ring shapes, etc., depending on different needs. Single or multi-layer options are available.



Porous Sintered Metal Stainless steel discs


Porous sintered metal stainless steel discs refer to discs made of stainless steel material that has been sintered, a process of heating metal powders to a temperature where they bond together to form a solid structure. The sintered metal has a porous structure, which means it has interconnected voids or pores that can be used for various applications such as filtration, gas diffusion, and gas storage.


Stainless steel is a type of metal that is known for its corrosion resistance, strength, and durability, making it ideal for use in various industries such as food and beverage, pharmaceutical, and biomedical. Porous sintered stainless steel discs are widely used in these industries for filtration and separation applications. They can also be used in other applications such as catalytic converters, fuel cells, and water treatment systems.


Porous sintered stainless steel discs offer a combination of mechanical strength, high temperature resistance, and chemical stability, making them ideal for use in a wide range of applications.


In addition to stainless steel sintered discs, we also provide discs crafted from various other materials and can meet specific material requirements. Please refer to the specification sheet below for more details.

Specifications
Material selectionTitanium
Stainless steel:316L, 304L, 310S, 321, 904L
Hastelloy C22 C276 X
Inconel 600
Monel 400

Nickel

Accept customization requirements for other materials!
Filtration Grade

0.1um 0.3um 0.5um 1um 3um 5um 10um 15um 20um 30um 50um 80um 100um

Please tell us what level of filtration you require!
Data & SpecificationsDiameter: Min. 2mm, Max. 450mm

Thickness: Min. 1mm,  Max. 20mm

What size do you need?


Feel free to inquire about our sintered metal filter discs or any other products. Our dedicated team of professionals will promptly address your questions via email. While this process may take some time, we assure you that a comprehensive and accurate response will be provided. Thank you for your patience!



Do you need to order sintered metal filter disc?


When ordering sintered metal discs, you need to tell us these parameters required.

Disc diameter and thickness: Specify the desired dimensions of the sintered metal discs.

Material: Specify the type of metal you want the discs to be made of, as well as any additional material specifications (such as purity, grain size, or alloy composition).

Quantity: Specify the number of discs you need.

Tolerance requirements: If the discs need to be made to specific tolerances, provide the required values.

Surface finish: Specify the desired surface finish of the discs (e.g., smooth or rough).

Delivery time: Specify your desired delivery date and any other logistical requirements.


Where are you ordering the sintered metal filter intended for application?

Chemical processing - It is most common in nuclear manufacturing because it has some of the best properties, including high temperature and corrosion resistance.

Food and Beverage - It is primarily used in food processing to extract important nutrients and juices. They do not react to food or beverages, making them ideal for this application.

Power Generation- Sintered metal filters help ensure the efficiency and effectiveness of power generation by filtering water from turbines.

Petroleum refining- Sintered metal filters allow you to effectively filter different fuels to the desired degree.

Gas production - The elements are suitable for gas production because they do not react with the gas and you can also use them in different environments.



Inquire Now



Differences and differences between sintered metal filters of different materials?

Bronze is usually an alloy consisting of copper, which contains approximately 12-12.5% tin in addition to other metals and non-metals. It is arguably the most common and lowest cost alloy metal used for sintered filters. The advantage of bronze as a sintered metal filter is that it offers higher strength, higher temperature applications and better corrosion resistance.


Stainless steel fibers, on the other hand, are steel alloys with a minimum chromium content of 10.5% by mass and a maximum carbon content of 1.2% by mass. The advantage of this material for sintered metal filters is that it has a high corrosion resistance with better heat resistance, thus ensuring optimal results.


Titanium is a lustrous transition metal, silvery white in color, with low density and high strength, thus favoring sintered metal filters.


Nickel refers to a versatile element that can form alloys with most available metals. Therefore, nickel alloys are alloys with nickel as the main element. It is ideal for sintered metal filters that are particularly suitable for extreme environments. Nickel alloys are characterized by high resistance and corrosion resistance at both ambient and high temperatures.


Sintered metal filter process?

It is made when the bonding of particles in powder form occurs. This bonding occurs by diffusion at a temperature relatively below the melting point. This is a process involving three main steps.


The first step is to obtain the metal in powder form. This can be done by grinding, atomization or chemical decomposition. At this stage, you can choose to combine this powder with another metal to form an alloy or use it as is. This process is somewhat simple and does not allow for changes in the elements.


The second step is to pour the powder into a specific mold where you can easily shape the actual design of the filter.


The filter composition is formed at room temperature and high pressure. Usually, the amount of pressure you need to apply depends on the particular type of metal you are using, as metals have different ductility. Compaction of the metal powder is performed in a mold to form a solid filter. After this happens, you have the option to continue and remove the screen that is in a solid state and place it in a furnace at a high temperature.


So the result is what is now called sintering. The metal particles fuse during the sintering process without melting, resulting in a high strength, rigid and porous filter.


Can I use sintered metal filters with many types of oils?

Yes. Sintered metal filters are designed in such a way that they can filter a variety of oils and many other substances.


What happens when a sintered metal filter comes in contact with acidic materials?

Typically, sintered metal filters are chemically compatible and have excellent strength and stiffness to withstand exposure to acids and other adverse substances.

Therefore, you can be sure that your sintered metal filter will still be usable even after contact with acidic materials.


What types of chemicals can pass through a sintered metal filter without damaging the filter body?

All types of chemicals can move through this particular product without causing damage to it, because they are made with strong chemical resistant materials.


Is it possible for one of these sintered metal filters to melt due to high temperatures?

The likelihood of a sintered metal filter melting due to extreme heat is very close to zero.

The reason for this is that during the manufacturing process, metals tend to bond at temperatures well below their melting point.

Therefore, this certainly results in a robust sintered metal filter that can withstand high temperatures as well as a variety of harsh conditions.

Will sintered metal filters continue to work even under freezing conditions?

Definitely yes, as long as you can backwash it.

And most sintered metal filters are often produced by cold isostatic pressure, which makes it possible to have high porosity.

In addition, it improves its stability even under freezing conditions.


How do I clean a sintered filter?

The first thing to do when cleaning a sintered filter is to make sure that the differential pressure of the particular sintered metal filter is checked.

Therefore, the first step in cleaning this product is to place it in a nitrogen-protected oven and make sure that it is heated to 380°C and left for about two hours.

Ultrasonic cleaning can be considered an effective technique for cleaning sintered filter metals.

Simply place the filter in the ultrasonic machine and heat it for about 30 minutes.

In order to increase the efficiency of cleaning the porous parts of the filter, you need to make sure that you use a method that can reach the internal parts.

So this definitely requires a continuous flow of fluid to remove contaminants.

This is why you need to flow the fluid in the opposite direction to the direction in which the particles are stuck.

This is called backwashing.

Another method you can use to remove contaminants is by immersing the filter in the fluid separately.

When you do this, you allow the contaminants in the fluid to absorb the fluid, then allow it to drain for a few minutes, and then repeat the process.

However, you need to make sure that you take all the necessary precautions when cleaning sintered metal to prevent it from breaking down or disintegrating.


How do I handle and store sintered metal filters?

When cleaning, always ensure that you use the recommended substances to give you the best results.

You also need to make sure that you observe the ideal precautions to prevent the filter from disintegrating during the cleaning process.

In terms of storage, always store them in the right place where there are relatively few physical actions that could damage them.
