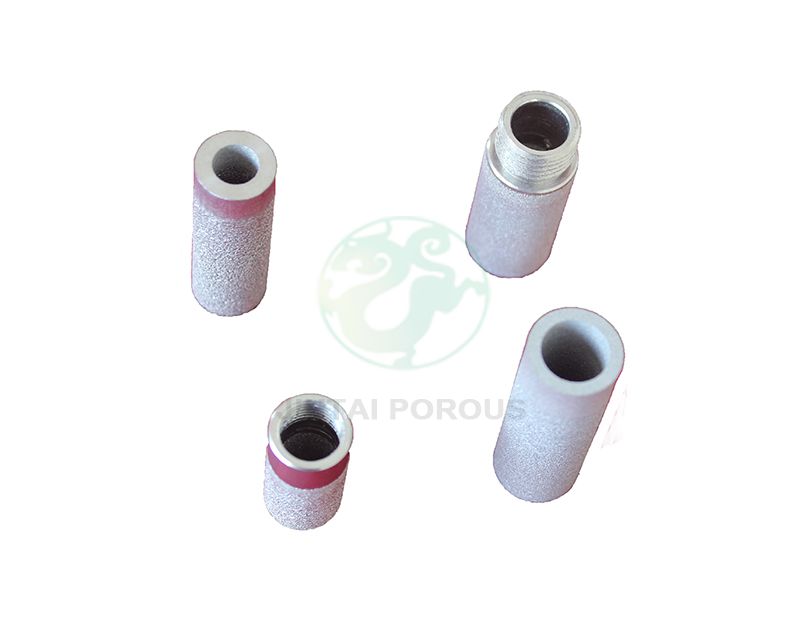

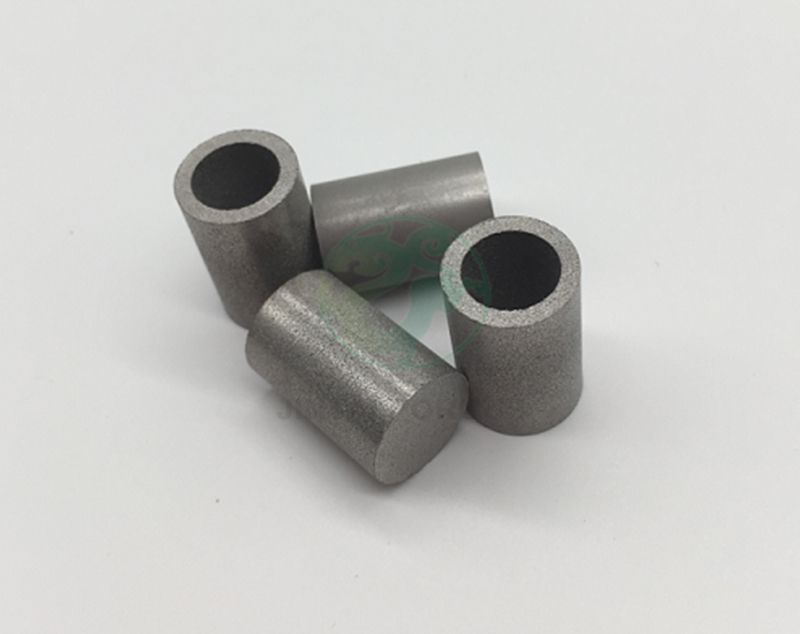

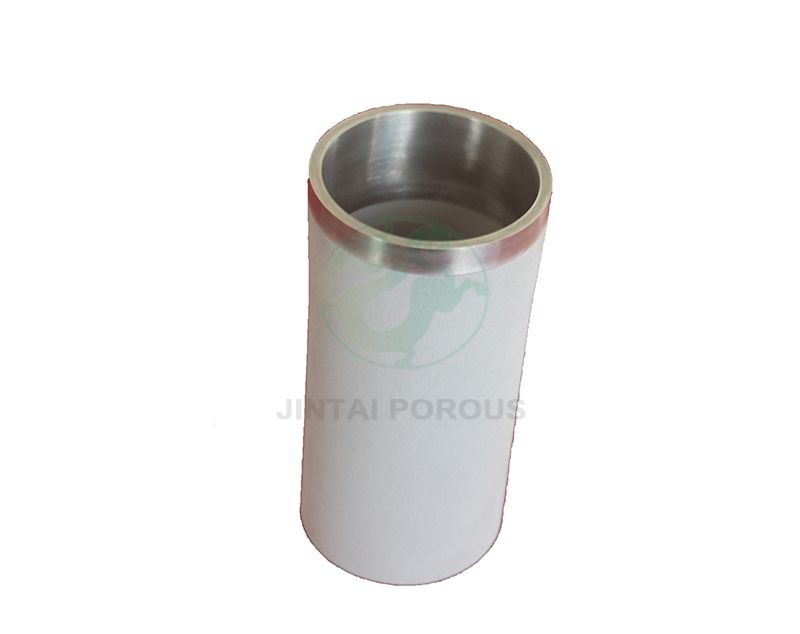

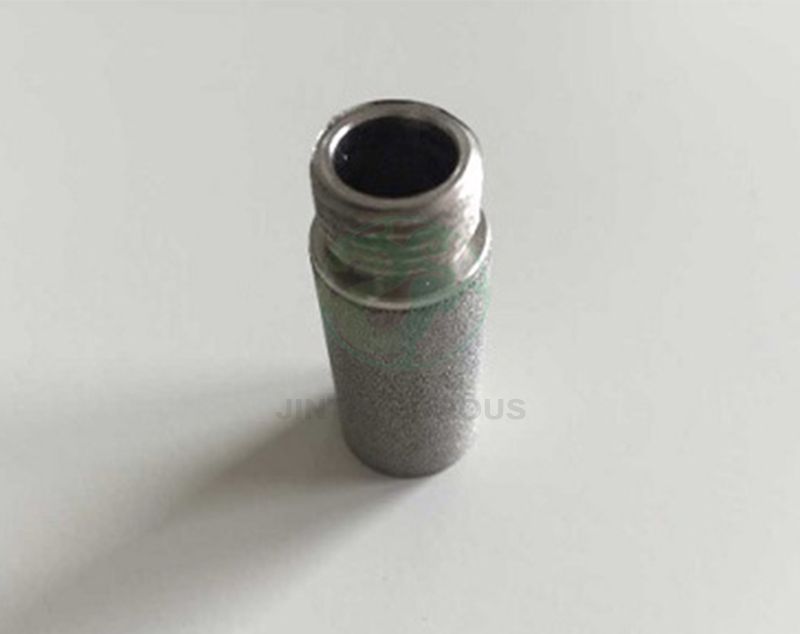

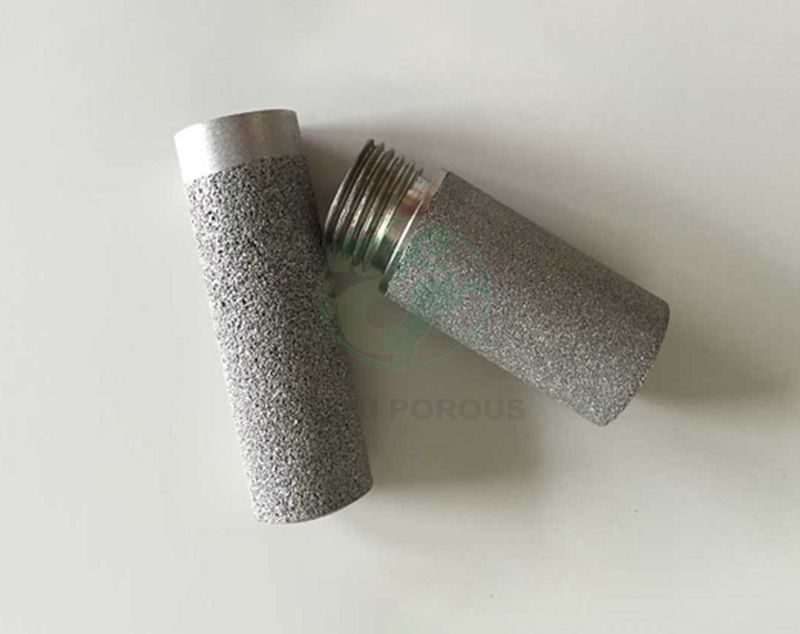

The porous metal cups of Jintai Company can be customized in various specifications according to customer requirements, and the parameters such as length, diameter, thickness, material and grade can be changed to meet customer's process requirements. In addition, the porous metal cup can be attached to other metal or non-metal parts.
| Material selection | Titanium Stainless steel: 316L, 304L, 310S, 321, 904L Hastelloy C22 C276 X Inconel 600 Monel 400 Nickel Other materials required by the customer |
| Filtration Grade | 0.1um 0.3um 0.5um 1um 3um 5um 10um 15um 20um 30um 50um 80um 100um Other grade required by the customer |
| Data & Specifications | OD: minimum 4mm ID: The smallest can be 2.5mm Length: The minimum can be 2mm Thickness: The thinnest can be 1mm, the thickest can be 6mm Other specifications and sizes required by customers |
FAQ About Sintered Porous Metal Filter
The Jintai has been committed to the development of metal porous materials and related technologies and applications. As early as more than 20 years ago, Jintai began to focus on the development and production of metal porous powder sintered filter elements. We has 15 invention patents and utility model patents. It has been a high-tech enterprise and has passed ISO9001 quality management system certification. After more than 20 years of technical accumulation, Jintai can now provide customers with a variety of product materials and specifications to meet customer needs.
We can customize Porous Metal Cups for a variety of applications and specifications, and can connect to both metallic and non-metallic hardware options to provide complete assemblies. We can accommodate a variety of variables such as length, diameter, thickness, alloy and media grade to meet the various filtration, flow and chemical compatibility challenges of your product or process.
