Porous Metal Spargers Rings

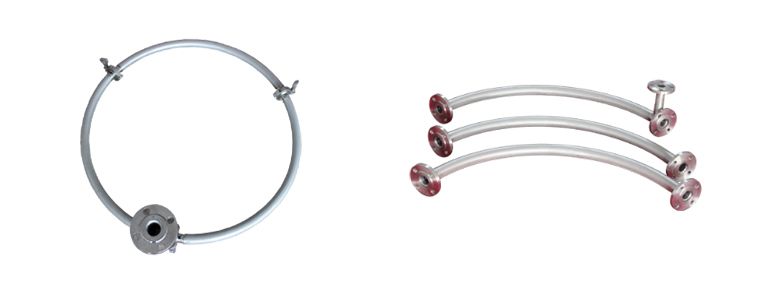

The product is made of arc-shaped stainless steel sintered filter element, quick-fitting connection or flange connection. The arc-shaped stainless steel microporous sintered filter element is sintered with high-quality 316L stainless steel powder, and the quick-fitting interface or flange is made of dense stainless steel.

Specifications
No.ModelOD of Sparger Ring (mm)OD of Arc-shapedtube (mm)ConnectionAeration Area(㎡)
(water depth above 4 meters)
O2 utilization ratio
1JTBQHф1800-2500Φ30-50Flange or quick connection7-1230-40%

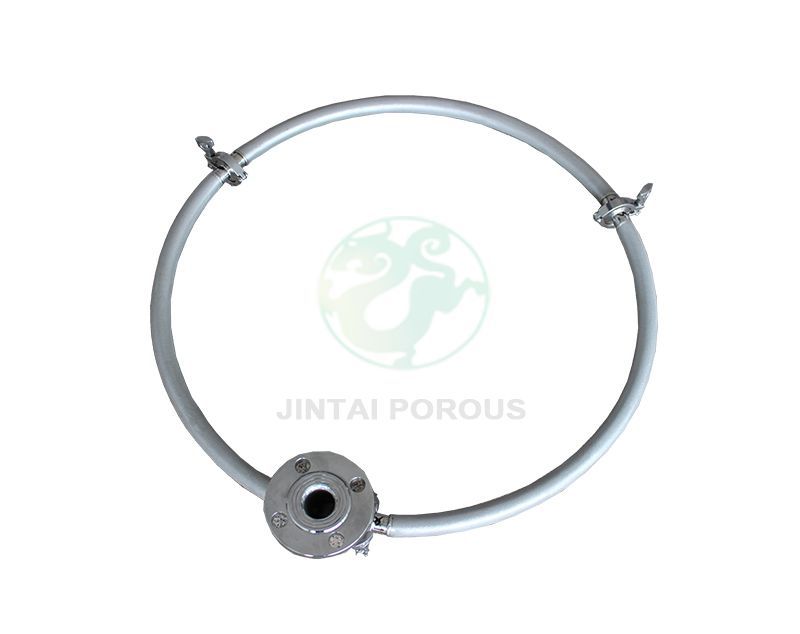

Sparger ring


Typical Application

Ozone sterilization and aeration of purified water and mineral water;

Aeration of industrial waste water;

Aeration in aeration tank for domestic sewage treatment;

Aeration in high temperature environment.

Aeration in fermentation tanks and reactors;

Gas stirring;

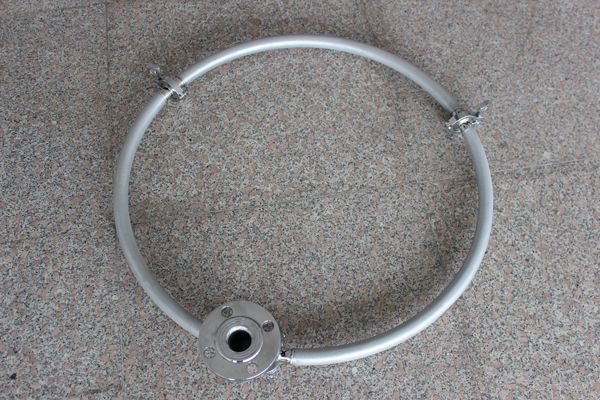

Sparger ring


Ring Sparger Solutions for Industrial Applications

Our sintered stainless steel ring spargers can be configured for large tanks and industrial gas distribution systems. Selection is based on tank geometry, gas demand, operating pressure and the required distribution pattern.

Application

Common Challenge

Configuration Approach

Wastewater Aeration

Uneven aeration across large tanks

Evaluate ring diameter, installation position and gas distribution

Ozone Water Treatment

Insufficient gas-liquid contact

Review pore characteristics, gas flow and ozone-compatible materials

Fermentation Tanks

Uneven gas supply during operation

Assess ring layout and gas delivery requirements

Chemical Reactors

Material corrosion or process incompatibility

Review 316L compatibility with the operating medium

High-Temperature Aeration

Thermal stress on equipment and connections

Evaluate operating temperature, sealing and mounting materials

Existing Tank Retrofit

Installation and pipe connection mismatch

Customize connection dimensions according to tank drawings


Custom Ring Sparger Design Options

Customization

Requirements

Ring Outside Diameter

Standard range: 1800–2500 mm; other sizes subject to review

Porous Tube Diameter

Standard range: 30–50 mm

Material

316L stainless steel; alternative materials subject to assessment

Ring Configuration

Review geometry and installation layout

Connection

Flange or quick connection

Gas Distribution

Evaluate gas flow, permeability and operating pressure

Installation

Mounting position and existing pipeline compatibility
