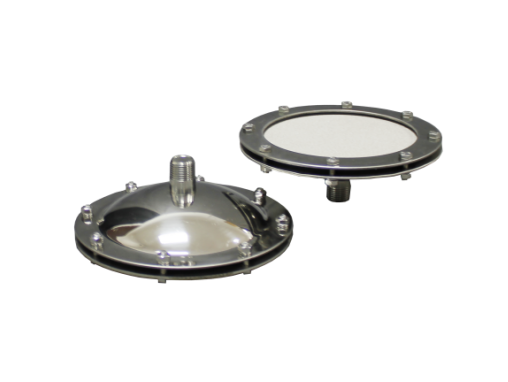

Disc Shape Spargers

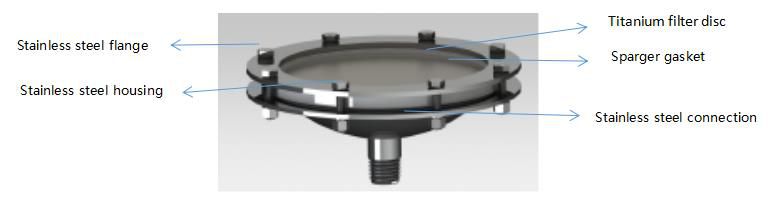

The product is composed of titanium filter disc, 316L stainless steel housing, 316L stainless steel flange, and sparger gasket. The titanium filter disc is sintered with high-purity titanium powder, and the sparger gasket is a leak-proof gasket specially designed for the spargers by our company.

Features

Disc shape spargers


High compressive strength, high temperature resistance and long service life;

Removable for cleaning and reuse;

The pore size is uniform and small, the distribution range is narrow, and the bubbles generated are small;

High porosity, low aeration resistance, high aeration efficiency;

No particles fall off and will not cause secondary pollution to the original liquid.

Disc shape spargers

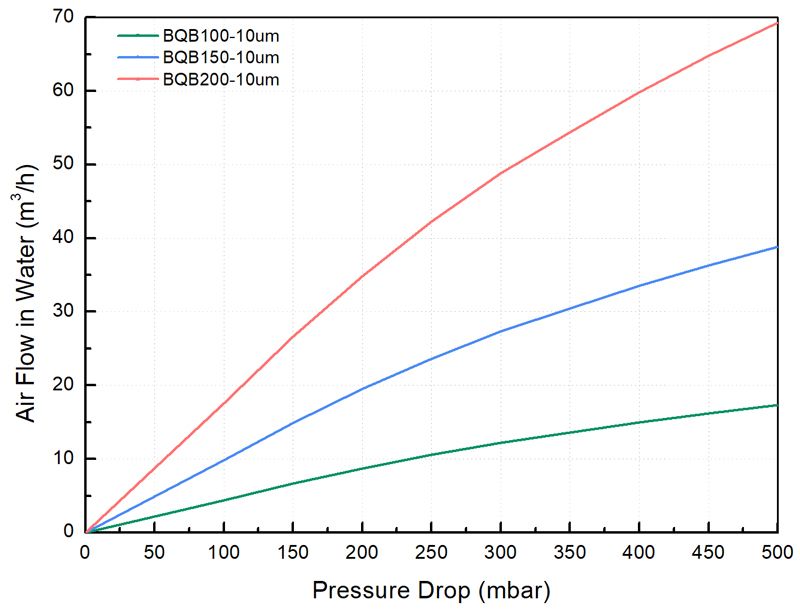

Titanium disc shape spargers aeration flow diagram (in water test)


Disc shape spargers

Specifications

No.ModelAir outlet diameter (mm)Height (mm)ConnectionAerationArea(㎡)
(water depth above 4 meters)
O2 utilizationRatio
1JTBQB-100ф10060R 1/2''0.432.22-45.33%
2JTBQB-150ф15068R 1/2''0.832.22-45.33%
3JTBQB-200ф20083R 1/2''132.22-45.33%
